CHS-2B150180-PC
Adjustable-beam desking system
STRETCH.
Eight components. Every top quoted as a range.
The beam adjusts, so one chassis covers a span of sizes instead of one. Specify the top you want between the listed limits and the frame takes it up — desks, returns, benches and meeting tables off the same eight part numbers.
- Configuration
- Lead component
- Face To Face Bench · Medium Beam
- CHS-2B150180-PC
Length — mm
Depth — mm
Bill of components
- Bench legs, one pairCHS-2BLEG-PC1 pc
- Horizontal beam · mediumCHS-2B150180-PC4 pcs
- Bench mid legCHS-BMLEG-PC1 pc
Price on request. Quantity, finish and installation move the number, so we quote rather than list.
Assembly
8 components. 4 desks.
- Side legsref 2
- Bench mid legref 1
- Horizontal barref 4
- Table topsref 7
- Modesty panelref 8
- Desk screens
The element set
Three beams, five leg packages.
Beams are named for the range of top they carry. Legs come as a four-set, a pair, or as bench end and mid legs — which is the whole vocabulary of the system.
4 legs package
LegsA full leg set at 720mm working height. Every freestanding table starts here.

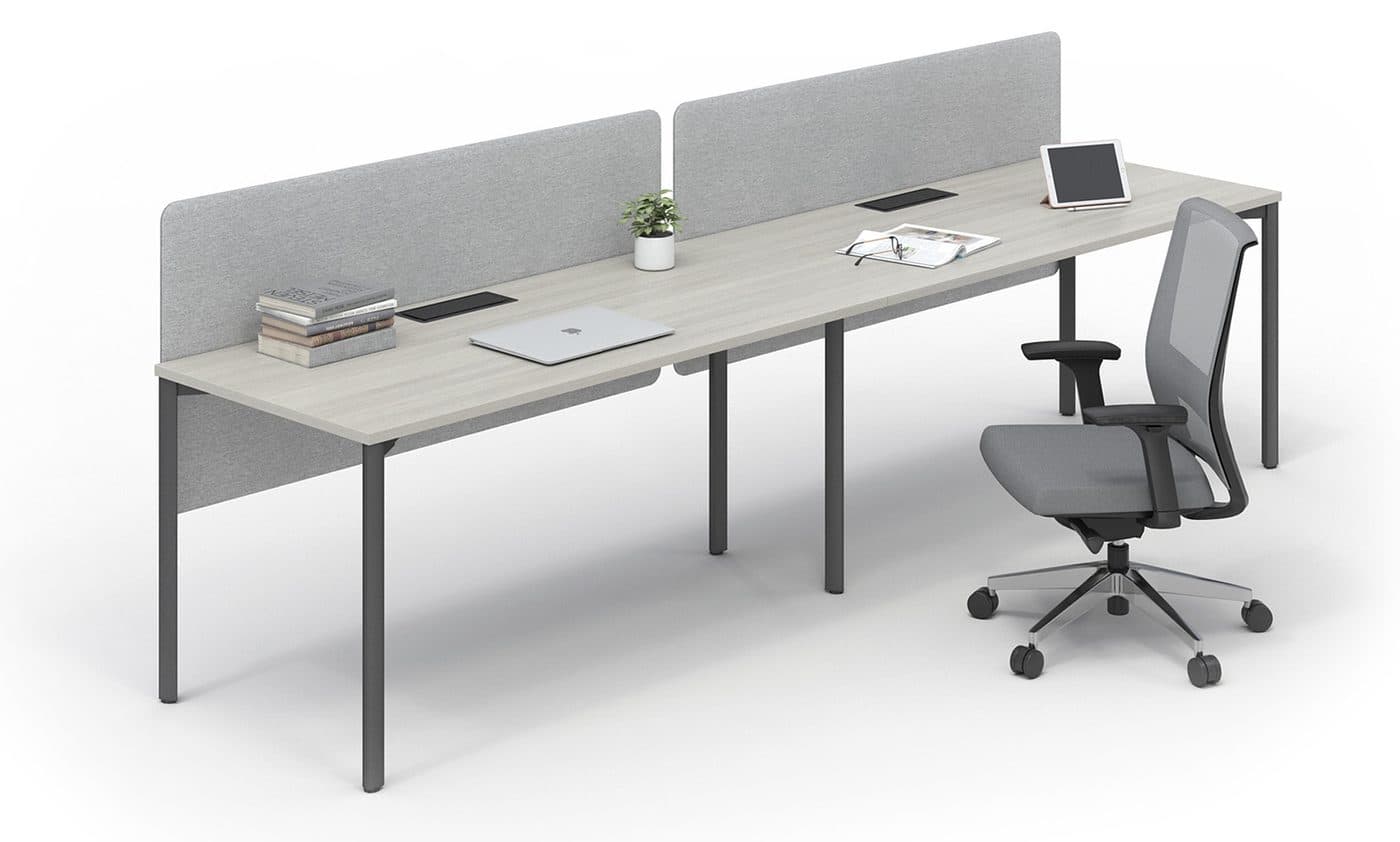

1CHS-4FLEG072-PCSingle in line mid leg
LegsIntermediate leg for desks run in line, so two tops share one support.

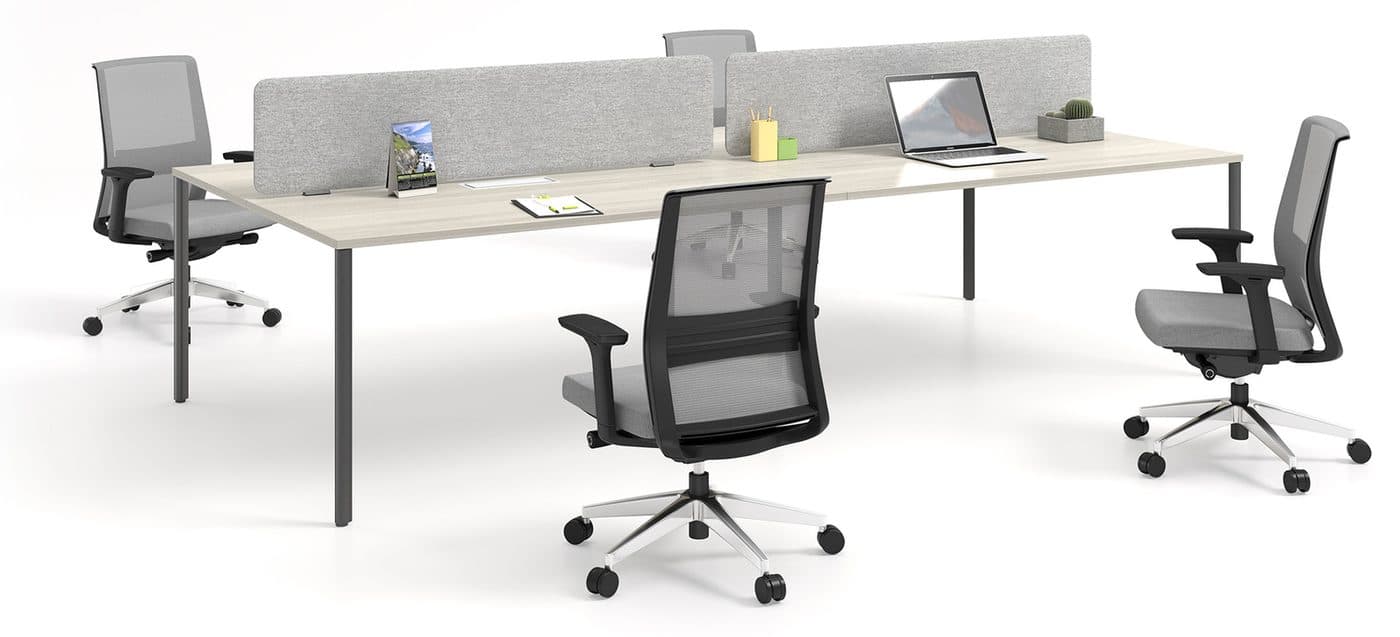

2CHS-SLMLEG-PCHorizontal beam · short

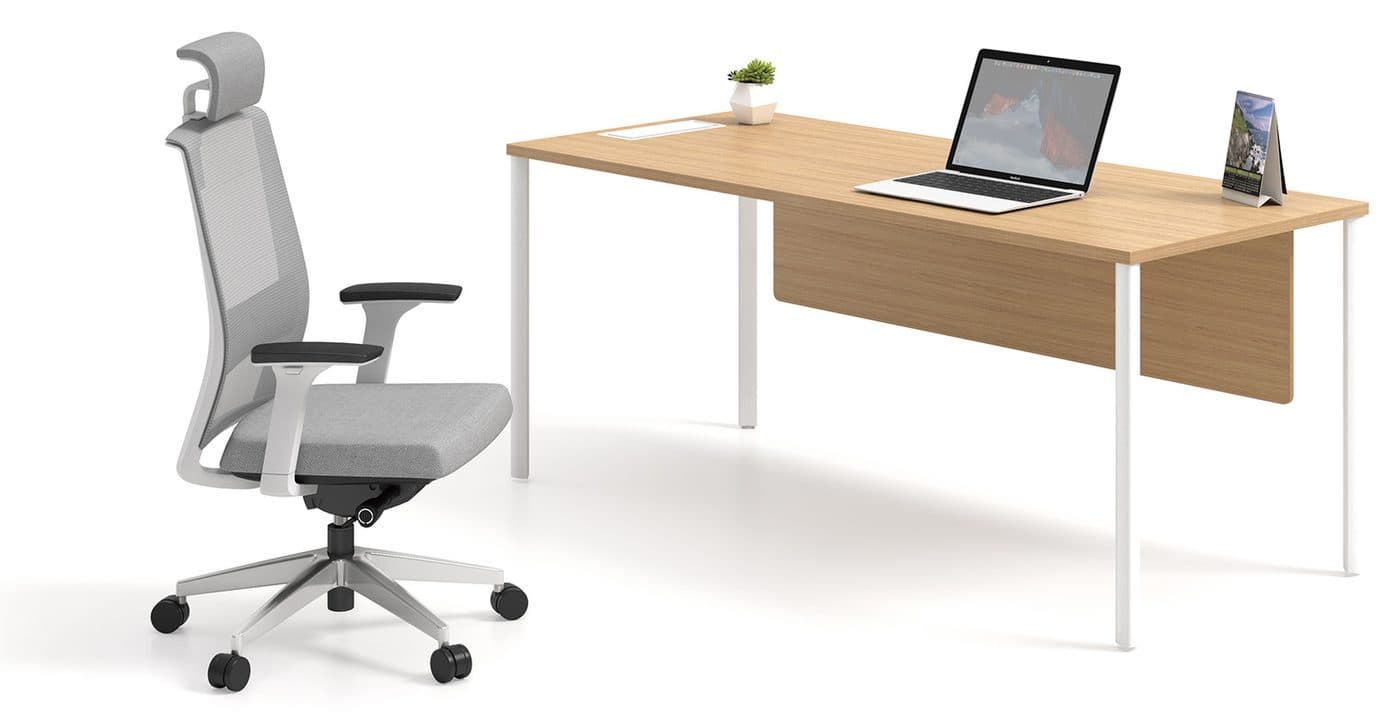

BeamSpans 1200 to 1400mm tops — single desks, returns, short benches.
3.1CHS-2B120140-PCHorizontal beam · medium
Beam1500 to 1800mm tops. The beam most face-to-face benches are built on.
3.2CHS-2B150180-PCHorizontal beam · long

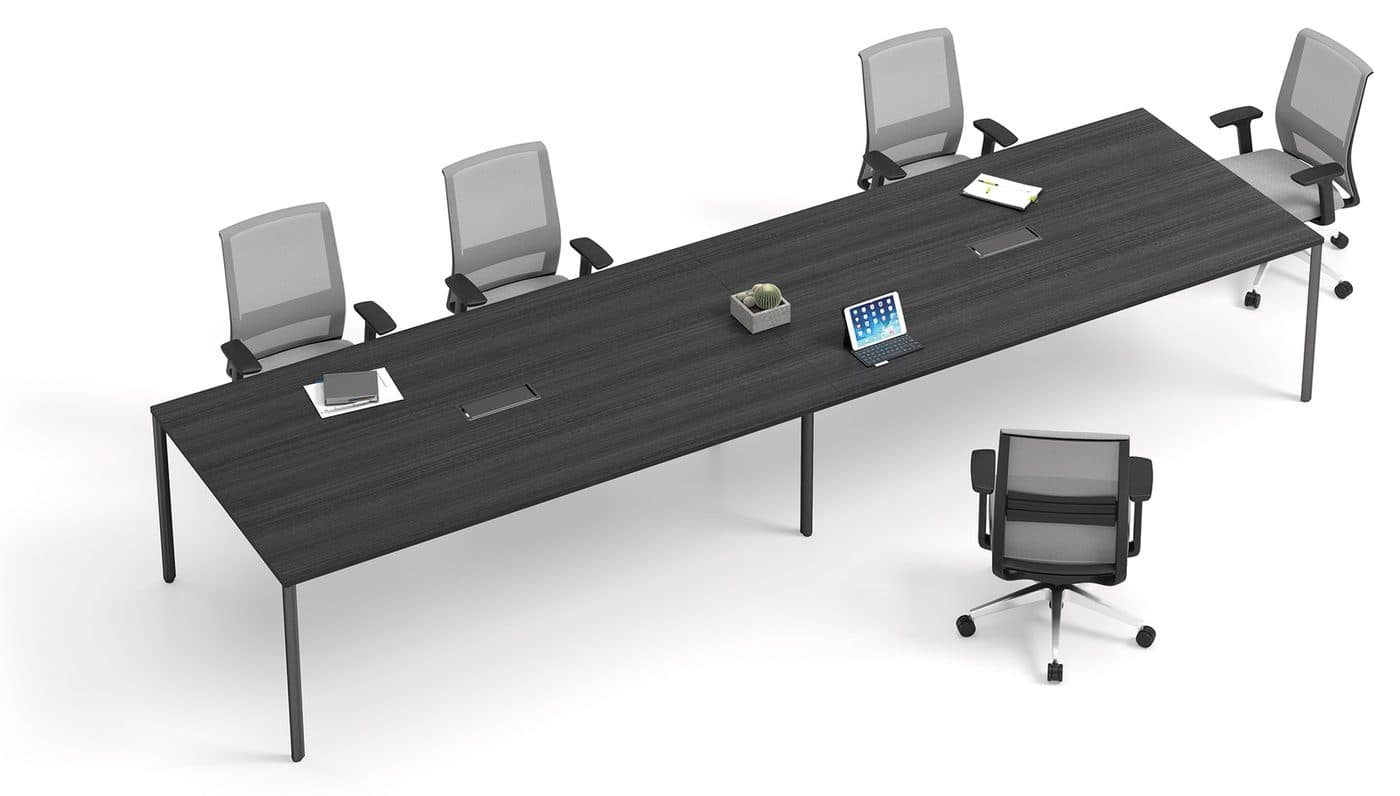

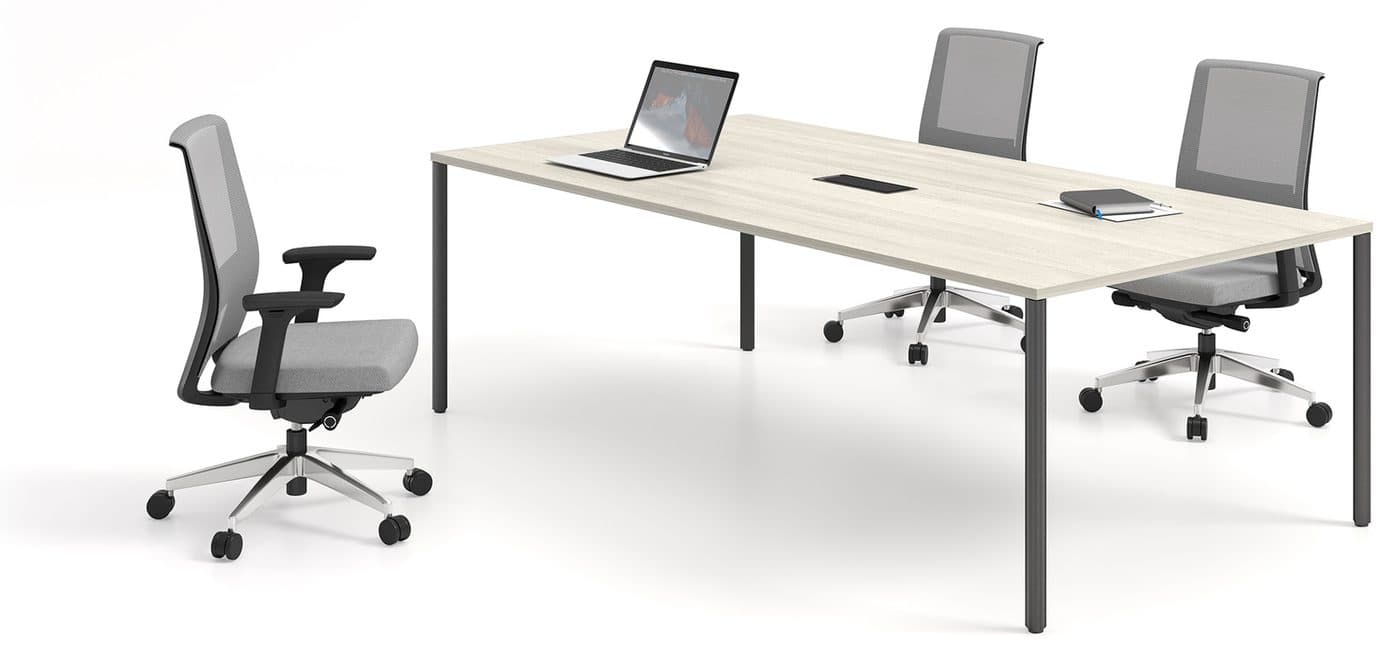

Beam1900 to 2400mm, through to the meeting tables.
3.3CHS-2B190240-PC2 legs package

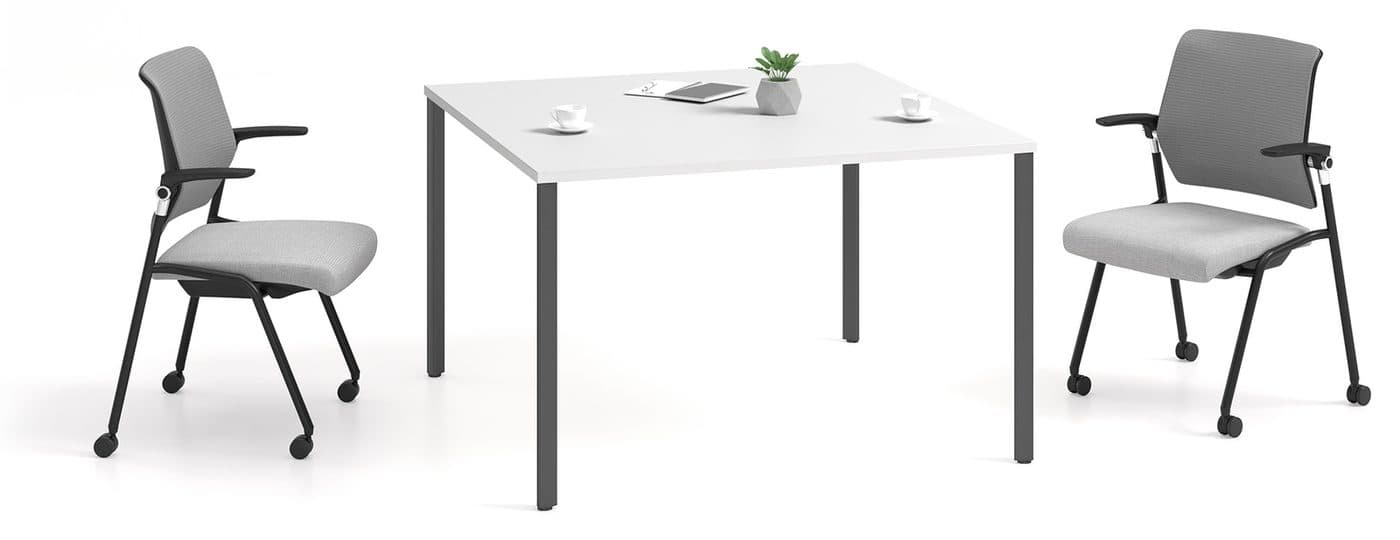

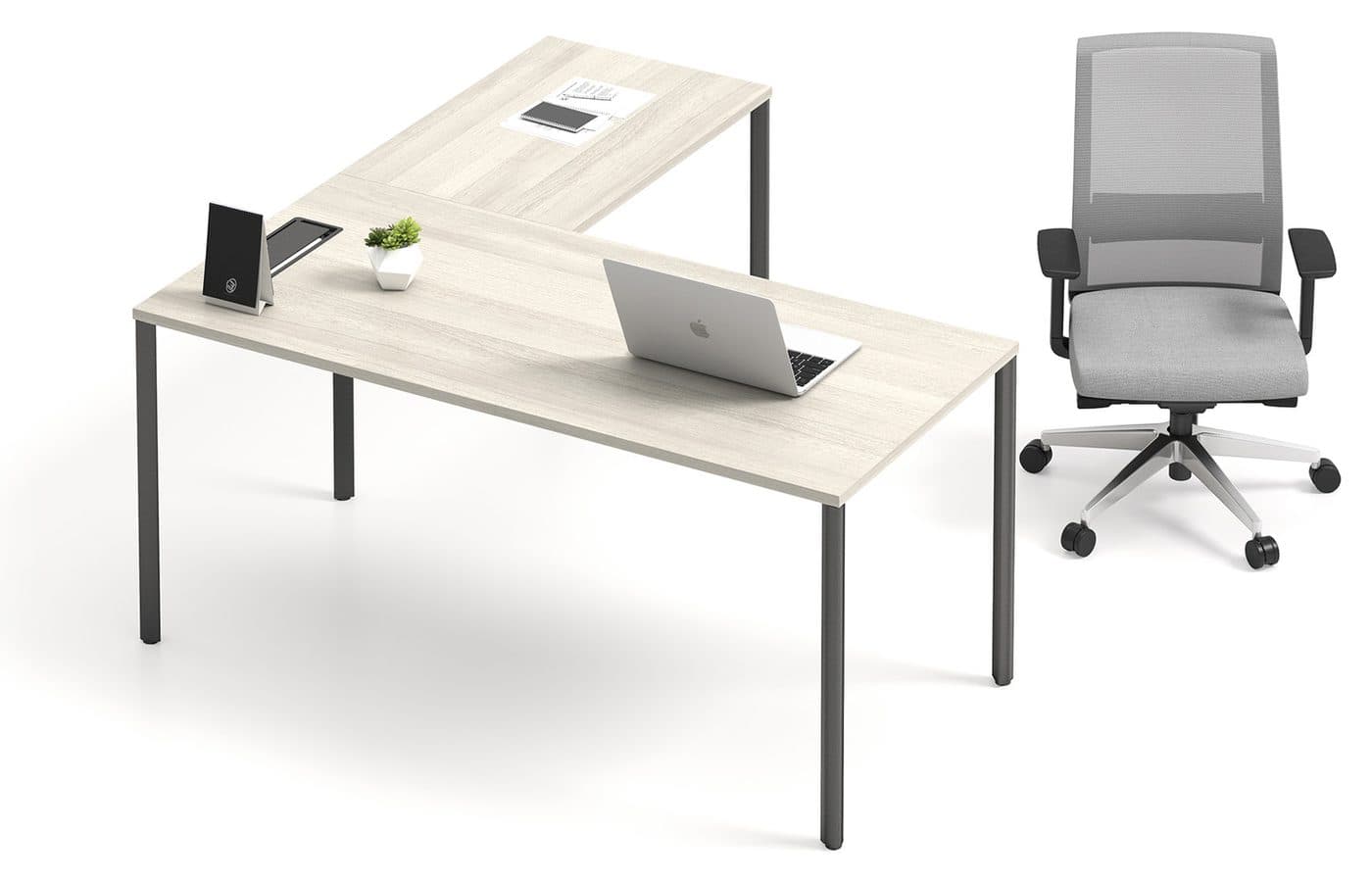

LegsOne pair at 720mm. Returns and the small square meeting tops.
4CHS-2FLEG072-PCBench legs, one pair
LegsEnd legs for back-to-back benching. Takes the beam load across the run.
5CHS-2BLEG-PCBench mid leg
LegsMid support between bench positions, added once a run passes two seats.
6CHS-BMLEG-PC
Beams are specified by the top they carry, not by the table: the same short beam sits under a 1200mm desk, a return and a face-to-face bench. Pick the top, and the beam follows.
Anatomy
Thirteen parts, each with a gauge you can hold us to.
Face to face bench · 2 seaters with side screens
Tap a number to look closer
Table top
Surface
- Core
- Particle board, T=25mm, E0 grade
- Finishing
- Melamine paper
- Edge banding
- T=2mm PVC
25mm core with a 2mm PVC edge — the edge is what survives ten years of chair arms.
Pick a number to read that part's gauge and finish. Materials are quoted from the manufacturer's specification sheet.
Cable management
A wire channel that travels with the beam.
Because the beam adjusts, the tray under it has to as well. Two lengths cover the range — specify by the span you need, not by the table.
- Horizontal wire tray
- Runs the length of the beam under the tops, holding the power rail.
- Vertical wire tray
- Takes the drop down the leg line to the floor box, out of sight.
Travel is the span the tray covers, not the length of the top — we size it against the beam on the quote.

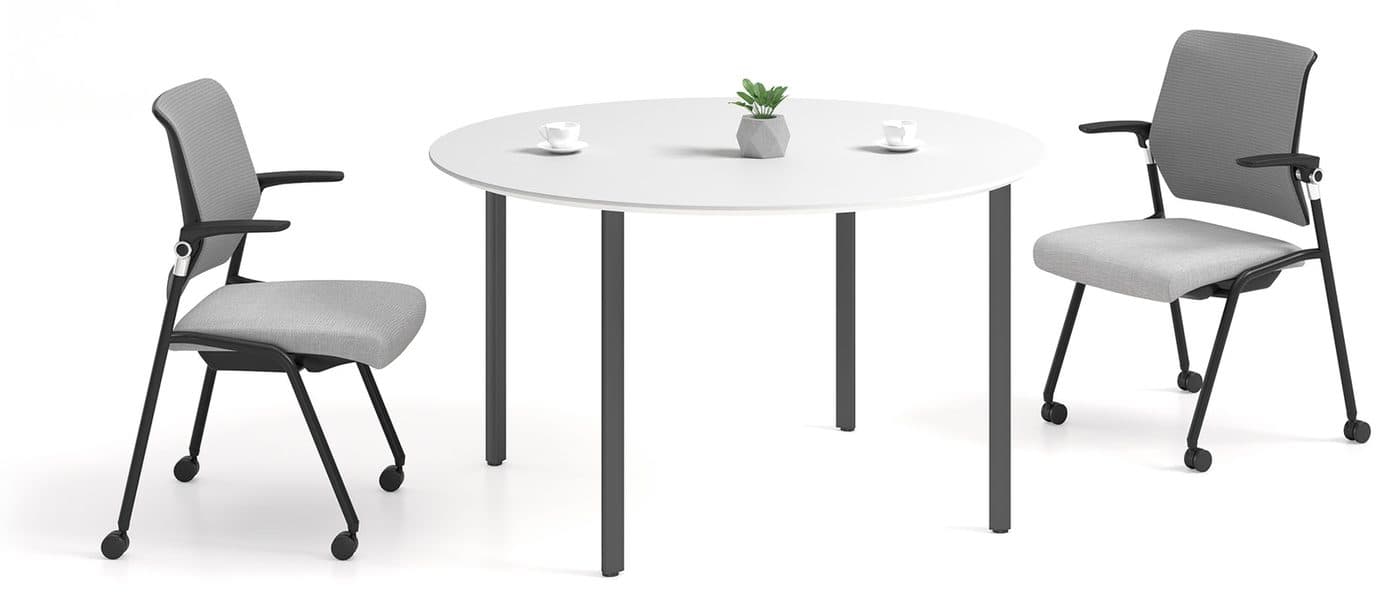

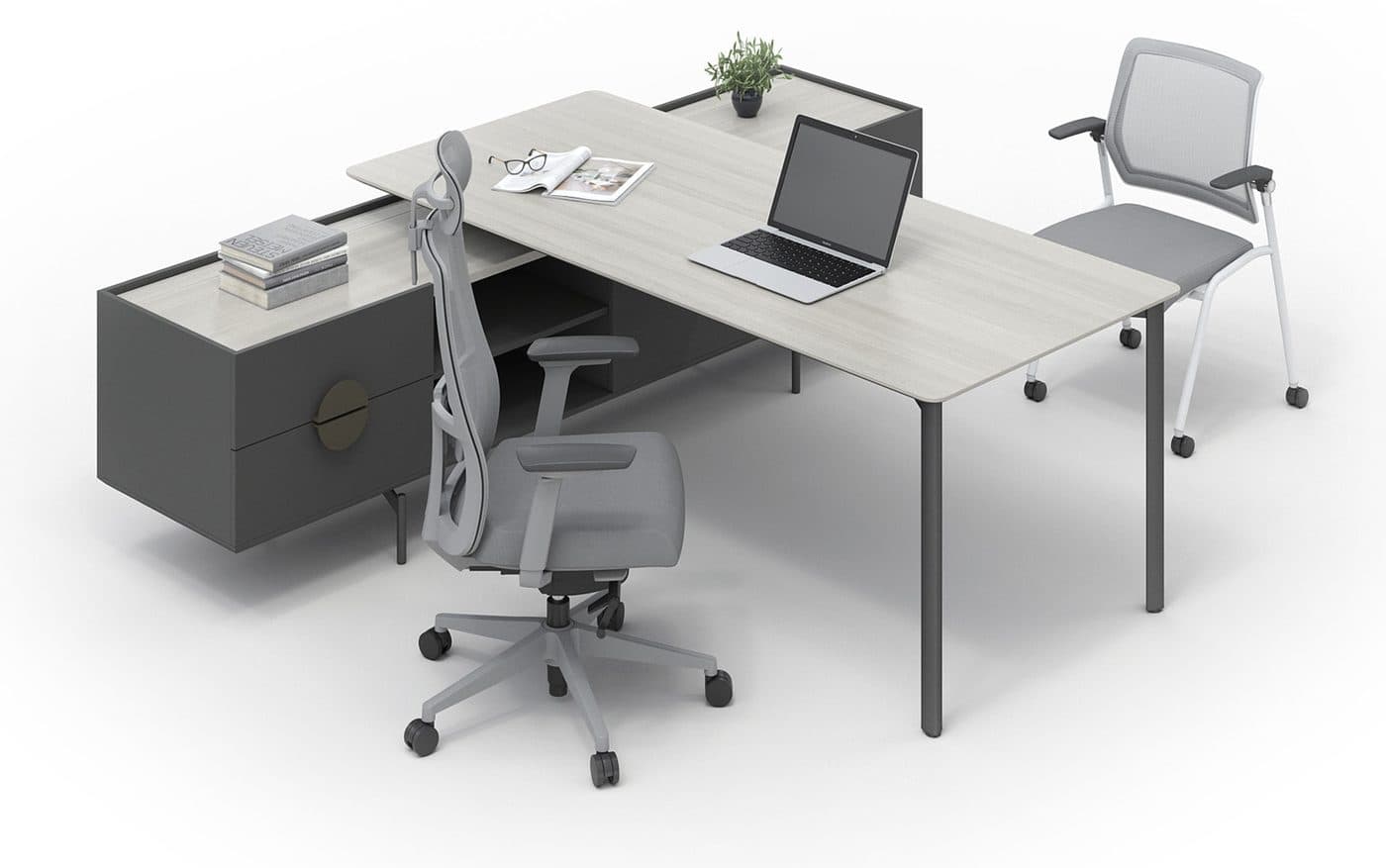

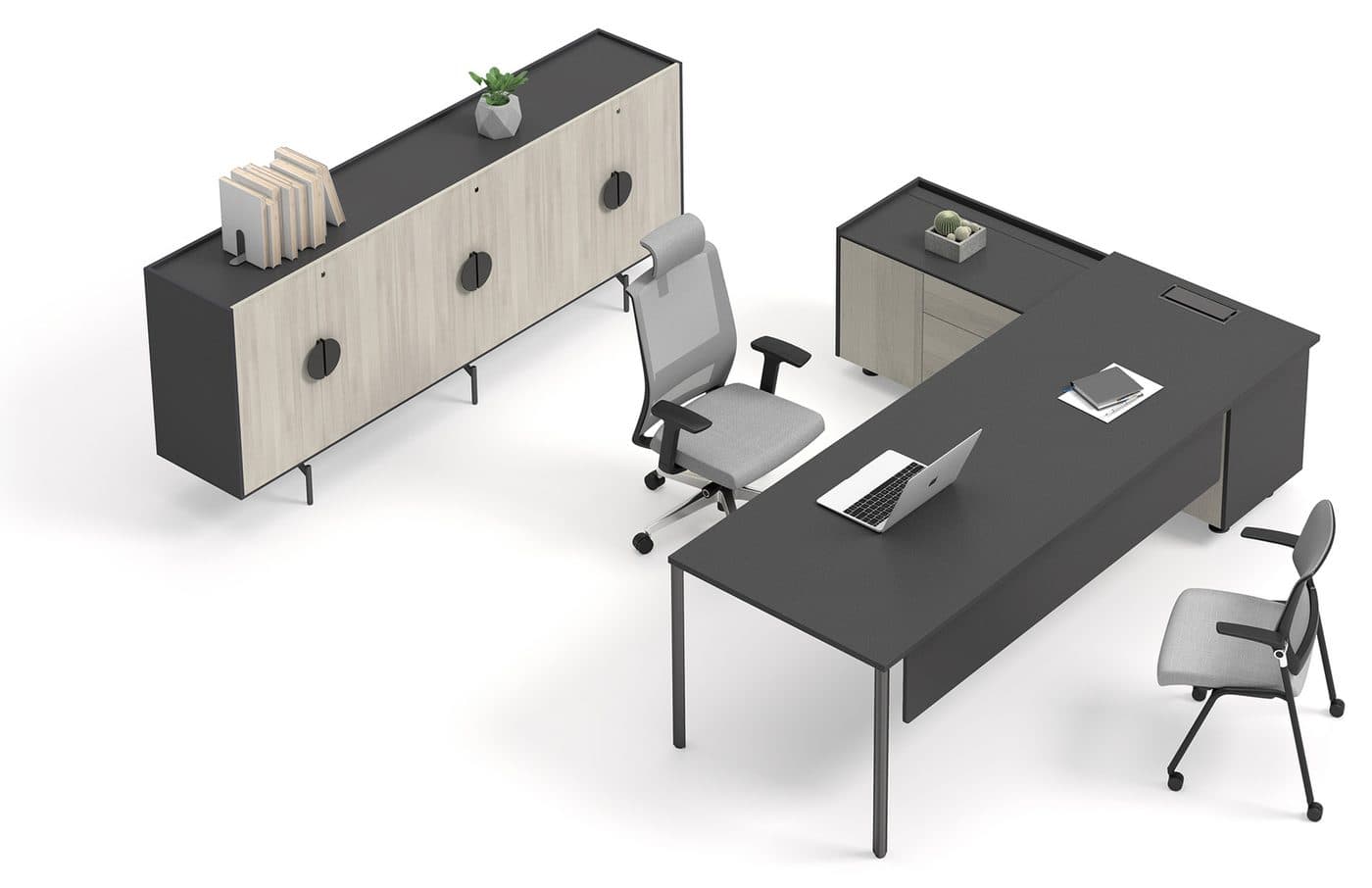

Also in the range
Four more tops the specification documents.
These are photographed and specified in the VARIDEX sheet but carry no size table or component schedule in it — so we quote them from the drawing rather than list sizes we cannot stand behind.
Quoted from the drawing — send us the space and we size these against the rest of the run.
Size chart
Ten configurations, quoted as ranges.
Working height is 720mm throughout. The specification quotes each top between two limits rather than as fixed sizes — pick the nearest limit here and we confirm the exact top on the quote. Select a row to load it into the viewer above.
Enquire
Tell us the span. We'll set the beam.
Send the floor plate and the headcount and you get back a component schedule and a drawing — with the beam and channel lengths already worked out.
Your selection
- Series
- STRETCH Series — adjustable-beam desking system
- Configuration
- Face To Face Bench · Medium Beam
- Size
- 1500 × 1200 × 720 mm
- Lead component
- CHS-2B150180-PC
- Quantity
- 12 positions
